Materials

This page covers the shared PBR material library: what it is, how to set it up, and how a material travels from Blender to Godot.

It is written for two audiences. Artists and modders need the setup and the publishing workflow. Developers need the pipeline internals, in How it works and after.

---

The idea in one paragraph

Some materials are used by one model only. Others, like rusted hull plating, concrete or raw ore, get reused across dozens of models. The second kind lives in a shared library: authored once, published once, referenced everywhere. Without it, every model that uses concrete ships its own copy of the concrete textures.

The moving parts

There is one Blender add-on, three Godot scripts and a few command-line tools. None of them is an editor plugin you have to enable per project.

Where	What	Job
Blender	tools/blender_scripts/addons/dyingstar_material_library/	Reads a material's node tree and publishes it: renames the maps, writes material.json, renders preview.jpg, rebuilds the asset library.
Command line	tools/validate.py	Enforces the manifest schema, the tag vocabulary and the pixel-level rules. Runs in CI and inside the add-on.
Command line	tools/build_asset_library.py	Regenerates materials_library.blend from the manifests, so the Asset Browser always matches what is committed.
Godot	addons/dyingstar/build_shared_materials.gd	Turns each material.json into the .tres Godot renders, and pins that material's texture import settings.
Godot	addons/dyingstar/shared_material_resolver.gd	Given a material name, finds and loads its .tres.
Godot	addons/dyingstar/post_import_shared_materials.gd	Runs on every .glb import and applies what the resolver found.

The list is this long because no single tool spans Blender and Godot. material.json is what they agree on: the add-on writes it, everything downstream reads it. Nothing else crosses the boundary, so nothing is configured twice and nothing can disagree.

A material's life, end to end

Publishing mat_rock_granite_grey, then using it on a model:

1. Blender: build the material, name it mat_rock_granite_grey, fill in the library panel, Export to Library. This writes assets/_universe/_shared/materials/mat_rock_granite_grey/ with its maps, material.json and preview.jpg, then rebuilds the asset library.
2. Command line: python tools/validate.py tells you whether it would pass review, before anyone else has to look at it.
3. Godot: run build_shared_materials.gd (Ctrl+Shift+X). The folder gains mat_rock_granite_grey.tres.
4. Blender: a modeller drags the material from the Asset Browser onto a mesh, unwraps at 1 UV unit = 1 meter, and exports the .glb with Materials: Export and Images: None.
5. Godot: the .glb is imported. post_import_shared_materials.gd runs on its own, the resolver matches the name, and the .tres is assigned.

Steps 1 to 3 happen once per material. Steps 4 and 5 happen for every model that uses it, and step 5 takes no configuration at all.

---

Which flow to use

Could this material be used on another model?

• No: model-specific. Nothing special to do, keep working as usual.
• Yes: it belongs in the shared library.

A cockpit panel painted onto one ship's UV layout is model-specific. Tileable concrete is not.

Flow 1, model-specific

The material is authored in Blender and exported inside the .glb with its textures. Godot imports it as part of the scene. No setup, no library.

Flow 2, shared library

The material lives in the library. The .glb carries the geometry and the material name only; Godot assigns the shared resource at import time.

The difference is not marginal. A single cube textured with a 1K concrete material weighs 3.7 MB through flow 1 and 2.7 KB through flow 2, because flow 1 embeds a copy of every texture in every model that uses it. Twenty ships sharing one hull plating: 74 MB versus 54 KB.

---

Setup

Everything below is a one-time setup. You need it to use or publish shared materials.

1. Clone the repository

The library is versioned in the game repository. Blender reads the materials straight from your local clone, so you need one, even if you never touch the code.

git clone https://github.com/DyingStar-game/DyingStar.git

2. Point Blender at the addon

Edit → Preferences → File Paths → Script Directories → + → <your-clone>/tools/blender_scripts

Then restart Blender. Addons are only discovered at startup.

3. Enable the addon

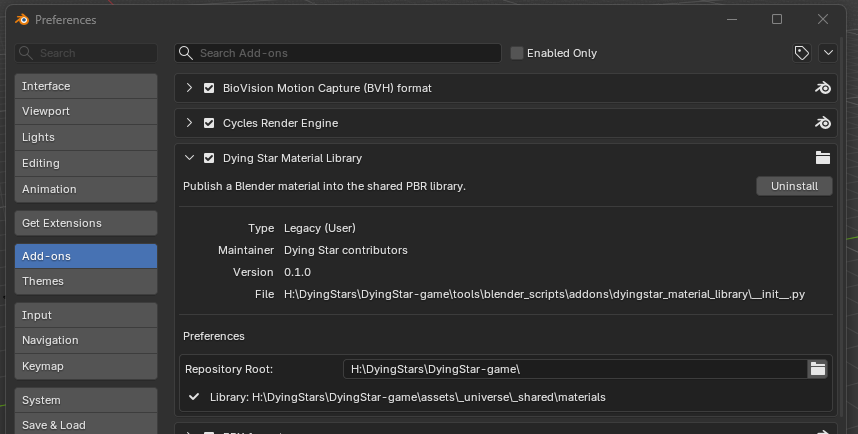

Edit → Preferences → Add-ons → search for Dying Star Material Library → tick the box.

Expand its entry and set Repository Root to your clone. The addon reads the tag vocabulary and writes materials relative to that path, so nothing works until it is set. The panel tells you if the path is wrong.

The check line under the field is the one to read: it shows the materials folder the addon resolved to. If it is missing, the Repository Root is wrong.

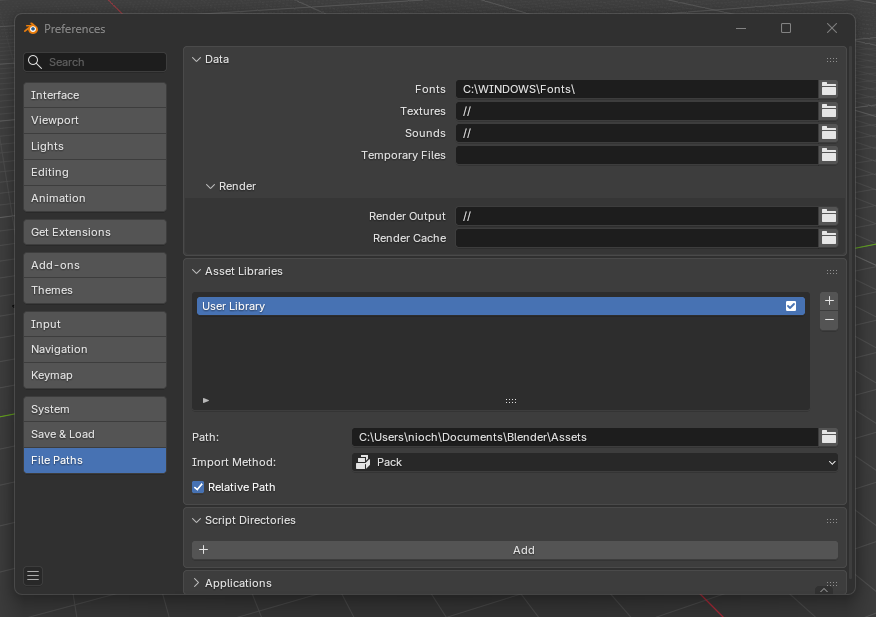

4. Declare the asset library

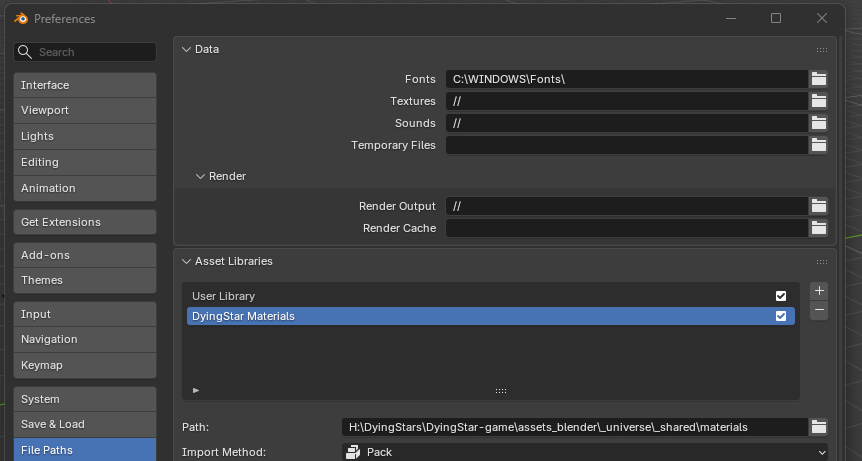

Edit → Preferences → File Paths → Asset Libraries → + → <your-clone>/assets_blender/_universe/_shared/materials

Name it DyingStar Materials in the Name column. Blender defaults to the folder name, which is materials, and any second clone or sandbox gives you a second entry with the exact same label. Two identically named libraries in the same dropdown are indistinguishable, and you end up publishing into one while reading the other.

This is what fills the Asset Browser.

Requirements

• Blender 4.0 or later. The addon uses ShaderNodeMix and the Emission Color input, both introduced in 4.0.
• No Python packages to install. The addon only uses numpy, which ships with Blender.
• validate.py, used in CI and optionally on the command line, needs jsonschema, pillow and numpy in your system Python.

---

Using a library material

1. Open an Asset Browser editor and pick the materials library
2. Set Import Settings to Link
3. Drag the material onto your object
4. Unwrap the model at 1 UV unit = 1 meter

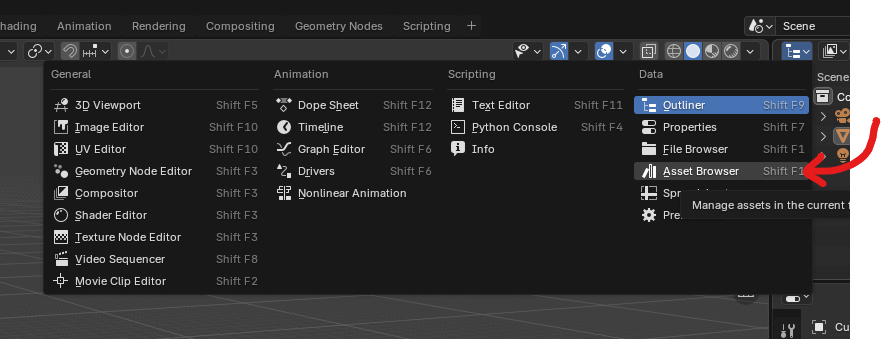

Any editor area can become an Asset Browser from the Editor Type menu in its top-left corner:

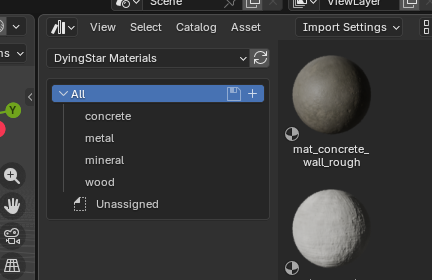

Then pick DyingStar Materials in the library dropdown. The catalogs down the left — concrete, metal, mineral, wood — are the families, and each material shows its preview under its mat_<family>_<name> id:

New materials arrive with git pull. Nothing to install, nothing to rebuild.

Link makes the material read-only. That is deliberate: a model must not be able to alter shared metadata, or every model would end up with its own variant and the library would lose its point. To correct a published material, use Append instead, fix it, and export again.

Export settings

Models using a shared material need these glTF export settings:

Setting	Value
Materials	Export
Images	None

Export keeps the material names, which is what Godot matches against. None leaves the textures out, which is the entire point.

Do not use Placeholder: it drops the materials altogether, names included, and Godot has nothing left to resolve.

Save these as an export preset (the + at the top of the glTF export panel) so nobody has to remember them.

To share one rather than have everybody rebuild it, Blender writes the preset as a small .py beside its own configuration:

System	Path
Windows	%APPDATA%\Blender Foundation\Blender\<version>\scripts\presets\operator\export_scene.gltf\
Linux	~/.config/blender/<version>/scripts/presets/operator/export_scene.gltf/
macOS	~/Library/Application Support/Blender/<version>/scripts/presets/operator/export_scene.gltf/

Commit the file under tools/blender_scripts/presets/ and copy it into that folder. The version segment has to match the Blender you run.

---

Publishing a material

Everything goes through the addon. There is no manual path: dropping a folder of PNGs into the library is not supported, because a published material must have been seen working in a shader graph at least once.

Steps

1. Build the material in Blender, named mat_<family>_<descriptor>, with its textures wired into the Principled BSDF, see Naming pattern, the family segment is required
2. Open Properties → Material → Dying Star Library
3. Fill in display name, author, license, and at least one tag
4. Detect Maps reads the node tree and fills in the real-world tile size
5. If Pack into ORM appears next to it, the material still carries occlusion, roughness and metalness as three separate maps. One click merges them into one texture and rewires the graph. The button is absent when there is nothing to gain
6. Export to Library validates, writes the files, generates the preview, and rebuilds the Asset Browser library

Then commit: the new folder under assets/_universe/_shared/materials/, and the regenerated materials_library.blend.

The material is published at that point, but Godot cannot use it yet: its .tres is generated separately, on the Godot side. See Building the resources.

What the panel shows

Library id: the identifier that will be written. It comes from the material name, not the display name. If they differ, the panel says so: fix the material name before exporting.

Detected maps: every image the exporter will pick up, with its dimensions. Surprises should happen here, not in review.

Maps are identified by connection, not by file name. Whatever is wired into the Roughness input is the roughness map, whatever the file is called. Supported chains: a direct image, an ORM split through Separate Color, ambient occlusion multiplied into base colour, and a height map bumped on top of a normal map.

The normal map is the one input that will not accept a direct image. It has to reach the Principled through a Normal Map node, which decodes it into a vector. Plugged straight in, its RGB values are read as a direction and the surface renders wrong, in Blender as much as in Godot. The panel reports Normal input goes through an unsupported node rather than publishing a material that would look broken everywhere. The node lives under Add > Displacement > Normal Map, or type its name into the Add search.

The published albedo is the image, nothing else. Only the images travel to the library, never the operations laid on top of them. A base colour tinted by a Mix node whose second input is a flat colour looks right in the viewport and comes out of the library pale, because that colour lives in the node tree. The panel reports Base Color is tinted by a flat colour. Flatten the tint into the image before exporting: the file on disk has to be what the surface actually looks like. The Mix node's second input is reserved for an occlusion map, which is the one modulation the pipeline does carry.

Tags

Tags come from a closed vocabulary in tools/schema/tags.json, offered as a dropdown. The family category decides which Asset Browser catalog the material lands in.

Adding a tag means editing tags.json in its own commit, so the change is visible in review. Never invent one in a material.json.

What the export reports

Every export ends on a line of the form mat_vegetation_bark_pine v2: 1 map(s) published, 2 already in the library.

Published means the file was copied into the material folder. Already in the library means the image node already reads the very file the export was about to write, so there was nothing to copy. That is the normal state of a material appended from the library, and it is also what an export looks like when the artist corrected a file the material does not actually read. The two are indistinguishable without this line, which is why it exists.

The version at the front moves only when the published bytes differ from what was there. A re-export that only corrects metadata keeps its version.

Correcting a published material

Append it from the Asset Browser (not Link), fix what needs fixing, and export again. The manifest is overwritten.

Its image nodes read the library files directly, so an export reports every map as already in the library. To replace a map's pixels, write the new image under assets_blender/_universe/_shared/materials/src/<id>/ and point the node at it with the image node's folder icon. Publishing then goes through export(), which stays the only writer of a material folder.

---

How it works

Naming is the join key

The same string appears in five places:

• the material name in Blender
• the id in material.json
• the folder name under _shared/materials/
• the material name Godot reads from the glTF
• the .tres file name

There is no lookup table and no configuration. A one-character mismatch breaks the assignment silently, which is why the addon shows the id it will write and warns when it diverges.

Naming pattern

mat_[family]_[descriptor]_[variant]

Part	Rule	Examples
mat_	Fixed prefix for shared materials	none
Family	Required. One value from the closed list below	metal, rock, wood
Descriptor	snake_case, most specific noun first, English	hull_plating, granite, plank
Variant	Optional: condition, colour, size, version	rusted, dark_grey, lg, v2

Examples:

mat_metal_hull_rusted
mat_rock_granite_grey
mat_concrete_wall_cracked
mat_wood_plank_dark

Everything is in English: descriptors, adjectives and colour names included. mat_metal_hull_rouille and mat_rock_granite_gris are wrong.

The family segment will drive footstep sounds

The family is not decorative. A runtime script will read the material name to pick which footstep sound to play, so that walking on metal sounds like metal and not like concrete.

That script does not exist yet. player.gd carries a single sfx_footsteps array today and picks from it at random, with nothing reading a material name. The convention is written down ahead of its consumer on purpose: the day the script arrives, published materials already carry the family it needs, and nothing has to be renamed after the fact.

This is why the family comes immediately after mat_, in a fixed position, and why it is drawn from a closed list rather than free text.

The list is the family category of tools/schema/tags.json, which is also what the addon offers as tags and what determines the Asset Browser catalog. One vocabulary, three uses.

Adding a family means editing tags.json, and once the footstep script exists, teaching it the new family in the same pull request. A family the script does not know will be a silent failure.

Texture files

Texture files follow tex_[descriptor]_[map].png, where [map] is one of albedo, normal, orm, ao, roughness, metallic, height, emissive, opacity. The addon writes them, so there is nothing to remember.

Shared materials sit alongside the prefixes listed in Files structure.

Layout

Shared materials live game-side, because their maps are real game resources referenced by .tres files and must survive the build, which wipes assets_blender/.

- assets/
  - _universe/
    - _shared/
      - materials/
        - mat_concrete_rough/
          - material.json
          - mat_concrete_rough.tres
          - preview.jpg
          - tex_concrete_rough_albedo.png
          - tex_concrete_rough_normal.png
          - tex_concrete_rough_orm.png
- assets_blender/
  - _universe/
    - _shared/
      - materials/
        - materials_library.blend
        - blender_assets.cats.txt
        - src/
          - mat_concrete_rough/
            - tex_concrete_rough_orm.png

material.json is the source of truth: everything else derives from it.

src/ holds maps an artist produced while authoring, before any export: a packed ORM, a re-exported normal, anything not yet published. It sits on the Blender side because nothing there is a game resource, and the build wipes the tree. Export is what moves a map from here into a material folder, and remains the only writer of one.

materials_library.blend is generated by tools/build_asset_library.py. Never edit it by hand, never resolve a merge conflict on it, regenerate it instead. The addon does this automatically after an export; the Rebuild Library button does it on demand.

Tiling scale

material.json carries physical_size_m: the real-world size, in meters, covered by one UV tile. A Mapping node in the material applies its inverse.

This only works because models are unwrapped at 1 UV unit = 1 meter. The material holds half of the contract, the model holds the other half. Unwrap at a different scale and the field means nothing.

To change how a material tiles on one model, unwrap that model differently. Never edit the material: it is shared, and the change would apply everywhere.

Godot side

Two scripts live in res://addons/dyingstar/. Neither is an editor plugin: there is nothing to enable in the project settings.

Building the resources

build_shared_materials.gd turns every material.json into the .tres that sits beside it, inside the material's own folder. It is an EditorScript: open it in the script editor and run it (File > Run, or Ctrl+Shift+X) after adding or correcting a material. The resource is derived, so it is always rewritten, like materials_library.blend, never edit it by hand.

It is deliberately kept out of the import pipeline. A glTF exported with Images: None carries no textures, so an import has nothing to build a material from, and writing into res:// mid-import triggers a filesystem rescan.

The same pass pins the import settings of every declared map. Left alone, Godot guesses which texture is a roughness map by watching how materials sample it, and the guess is unreliable: it has been seen wiring its roughness limiter onto the occlusion and height maps while leaving the real roughness map on Detect. material.json already states what each map is, so the setting is written rather than detected.

Two maps are not translated literally, because a Godot slot does not always do what the Blender node did:

Map	Godot	Why
ao	ao_texture, with ao_light_affect = 1	Blender multiplies occlusion into the base colour, so it darkens everything. Godot's default dims ambient light only, which leaves the surface markedly brighter than the viewport it was judged in.
height	not wired, reported as a warning	Godot's heightmap slot drives parallax mapping, which displaces UVs. In Blender the same map feeds a Bump node, which only perturbs the normal. Wiring one to the other makes the surface swim as the camera moves, and costs GPU for a look the material was never authored for. The map stays in the library for a use that genuinely wants displacement.

Where a material's resource lives is defined once, in SharedMaterialResolver.resource_path(). The generator writes through it and the resolver reads through it, so the two cannot drift apart.

Assigning them at import

post_import_shared_materials.gd is the Import Script of every .glb. It is set once as a project default rather than per model, in project.godot:

[importer_defaults]

scene={
"import_script/path": "uid://kgqqvfi5nd42"
}

Two things about that block are easy to get wrong.

The value is a UID, not a path. Godot stores the script by its identifier, the one in post_import_shared_materials.gd.uid, and resolves it back to a res:// path when it writes each .import. A res:// path written here is silently ignored and every model imports with no script at all. Yours will differ from the one above: read it from the .uid file in your own clone.

Do not produce it with Preset > Save as Default for 'Scene'. That command copies every setting of the model you are looking at, its own _subresources and its own meshes/generate_lods included, and turns them into project-wide defaults. Write the two lines by hand instead: one key is all this needs.

A default only applies when Godot creates an .import. Models already imported keep whatever their .import says, so an existing project needs its files edited or deleted once. New models then arrive already wired, with nothing to fill in.

Setting the field by hand on a single model has a catch worth knowing: the path box only commits on Enter, or when you pick the file with the browse button beside it. Clicking Reimport while the cursor is still in the box discards what you typed, and the field comes back empty as though the script had been rejected.

It runs on every reimport, which matters: Godot regenerates the imported scene whenever the source file changes, so a material assigned by hand would be silently lost at the next export from Blender. Doing it at import time makes the assignment part of the import.

The script only touches materials whose name starts with mat_. Everything else is left exactly as the glTF provided it, so both flows coexist without any per-model configuration.

If the matching .tres does not exist, the glTF material is kept and a warning is logged. An import is never broken by a missing library entry. A shared material arriving with embedded textures also logs a warning: it means the glTF was exported with the wrong settings.

Because the assignment is baked into the imported scene, moving or renaming a .tres invalidates every model already imported against it. Godot then refuses to open the scenes that use them, citing missing dependencies. Reimporting the models fixes it, and is worth mentioning in any commit that changes the layout.

---

Validation

The same rules run inside the addon and on the command line, so a material accepted at export cannot be rejected in CI.

python tools/validate.py                 # every material
python tools/validate.py <material_dir>  # one of them

Errors block; warnings inform.

Check	Severity
Manifest matches the schema	error
Tags exist in the vocabulary	error
Folder name matches the id	error
preview.jpg present	error
Dimensions a multiple of 4	error
Texel density close to the 1024 px/m target	warning
Normal map uses the OpenGL (+Y) convention	error
Grayscale maps stored in colour mode	warning
Constant map or dead alpha channel	warning
Height map below 16-bit	warning

The texel density target is what keeps two materials looking alike when they meet on the same wall. It is the resolution divided by physical_size_m, so a 1024 map covering one metre and the same map covering two are twice as fine as each other. The target is 1024 px/m: a 1 m tile wants 1024 px, a 2 m tile wants 2048. A quarter off either way passes without comment, since art direction sometimes has a reason.

The multiple-of-4 rule is not cosmetic: GPU block compression works on 4x4 blocks, so a texture that does not comply cannot be compressed in VRAM.

Square textures are not required. Bark stretched vertically, a trim sheet twice as wide as it is tall, are sound authoring choices, and physical_size_m already describes a non-square tile. A shape that really is wrong shows up in the texel density check, which judges each axis on its own.

The normal map convention is detected by comparing the green channel to the height gradient, so it only applies to materials that ship a height map. AmbientCG and Poly Haven both offer an OpenGL variant, take that one.

Where the rules live

tools/map_rules.py holds every rule and depends only on numpy. Two adapters feed it: tools/pillow_loader.py reads files from disk for the command-line validator, bpy_loader.py reads Blender images for the addon. A rule is written once and enforced identically wherever it runs.

The panel runs them continuously in metadata-only mode, reading the pixel buffer of a 4K map on every redraw would freeze the interface. The full check, pixels included, runs once at export.

---

Licensing

Every material declares its license, author and ai_generated: false. The schema rejects any other value for the last one: AI-generated art is not accepted in this project, and the manifest records that explicitly rather than relying on people remembering.

For third-party materials, CC0 sources such as AmbientCG and Poly Haven are safe. Anything else needs its license checked before publishing, an AGPL project cannot absorb material of unknown origin.
